We also provide the conveyor, Pallet Lifter, 90-degree turntable, etc to complete the whole packing line according to your application
Eopac's Inline Pallet Wrapper Advantage：
1. Siemens advanced PLC controller & 7'' colorful touch screen allows easy to operate.
2. Automatic cut & welding film unit, welding (seal) the film tail automatically to ensure no film tail comes out.
3. Heavy duty design and famous brand parts ensure long life and minimum maintenance.
4. World-famous parts ensure high quality of the whole line.
5. Operating costs and maintenance costs low, and automatic operation, can realize unmanned management operations.
Size of The Loads ( Pallets) to be Wrapped | |
Min load size | 800mm (L) X 600mm (W) |
Max load size | 1200mm (L) X 1200mm (W) |
Max load height | 1800mm (Option:2400，2800mm, 3000mm) |
Max load weight | 2000kg (Option: 3000kgs) |
Machine Performance | |
Packing efficiency | 20-25 loads/hour (Depending on pallet height) |
Load height sensing by PE | YES |
Turntable soft start & stop | YES |
Turntable rotation speed: | 3-15 rpm adjustable |
Turntable diameter | 1800mm (Option: 2000mm,2200mm, 2400mm) |
Turntable height | 450mm (standard) ( Other height available) |
Turntable drive | Slew bearing drive (More reliable and easy to maintenance) |
Turntable conveyor | Drive Roller |
Carriage Up/down Speed | Adjustable |
Film Delivery System | |
Carriage | 1. Power pre-stretch Film Delivery System, stretch ratio up to 250%. 2. Film tension adjustable |
Film Clamp & Cut Unit | |
Cutter: | Yes (Hot wire cutter) |
Film tail wipe unit: | Yes ( Pneumatic control) Welding (seal) the film tail, ensure no film tail comes out |
Film tail clamp unit: | Yes ( Pneumatic control) |

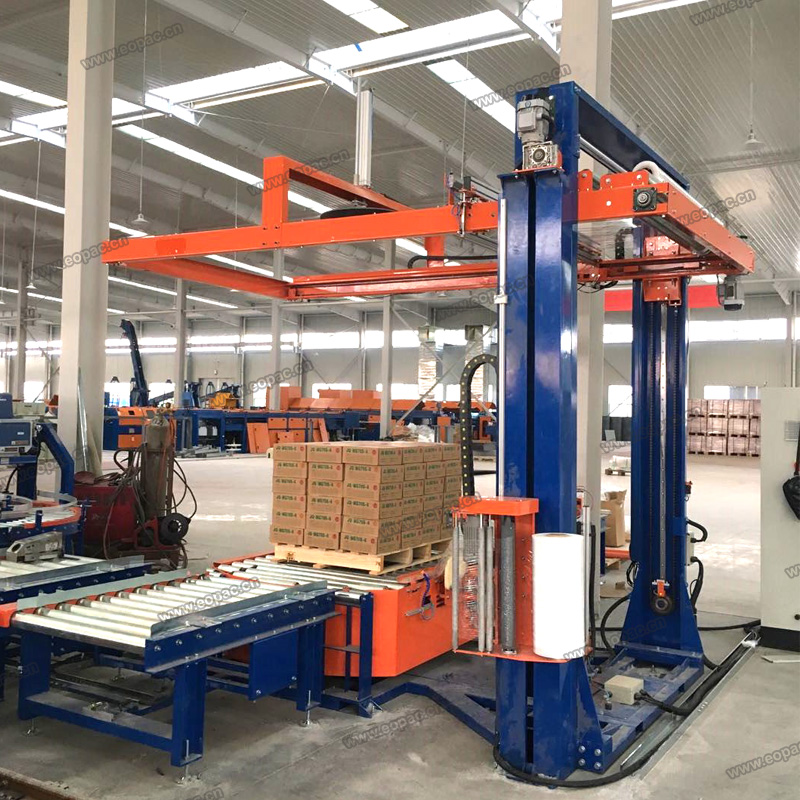

Top Sheet Cover Unit: | |
Top sheet film infeed length | 2000mm (max) Adjustable |
Film cutter | Rodless cylinder control, Blade cutter |
Clamp | Pneumatic control |
Air consumption | 1000ml/min |
Top sheet film | Inner dia=76mm Outer dia=260mm(max) Film max width=1800mm Film thickness: 40-100µm |
Electrical Features | |
Power supply voltage | 380 V 3Phase – 50/60 Hz |
Power | 2.7Kw Turntable motor: 1.1kw Film carriage lift motor: 0.37kw Film feed motor:0.37kw Conveyor motor: 0.75kw |
Machine Weight & Size | |
Machine size (LXWXH) | 3800mm X2200mm X2900mm |
Machine weight | N.W. 1000KG G.W.1100KG |
The end-of-line solution will be tailor make according your application.
We also make Chain Conveyor , Roller Conveyor , Pallet Rotating Turntable, Pallet Pop-Up Transfer, Pallet Lifting Device etc to complete the whole line.
Looking for the suitable end-of-line solution?
Contact us soon. And our experienced technicians will design the end- of -solutions based on your applications.
