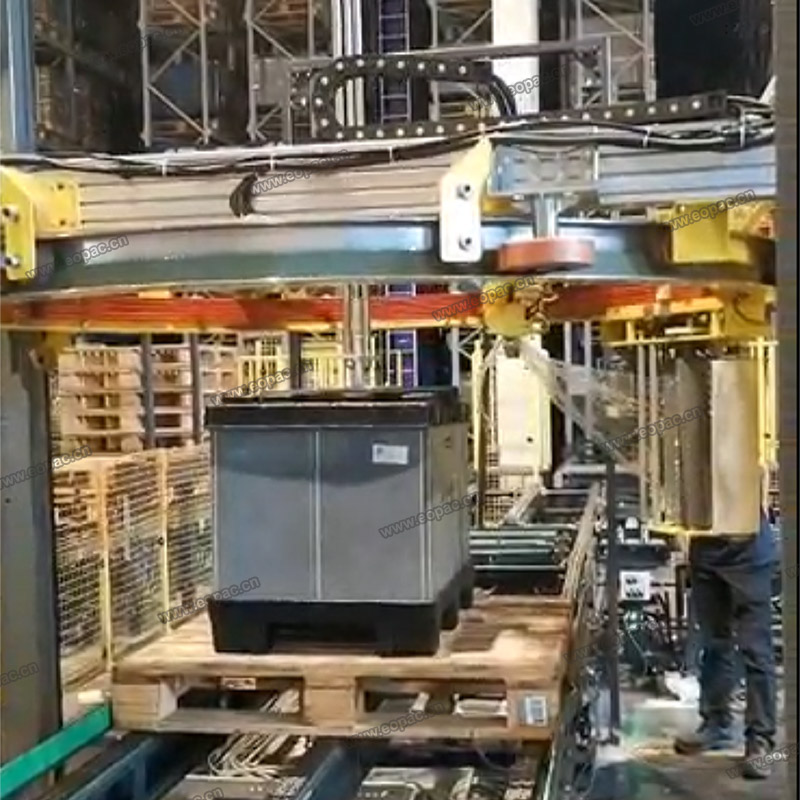

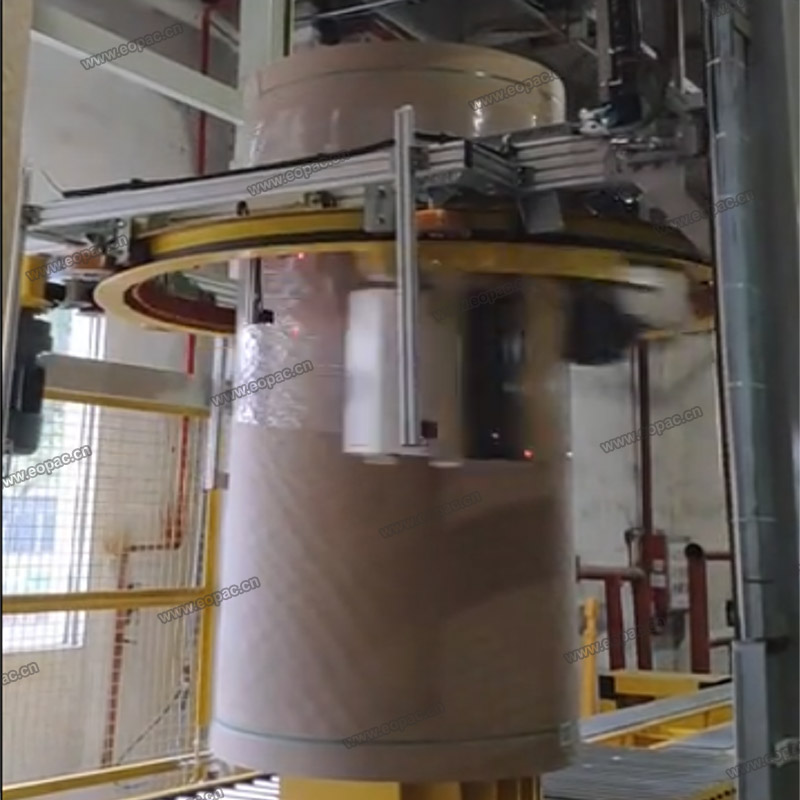

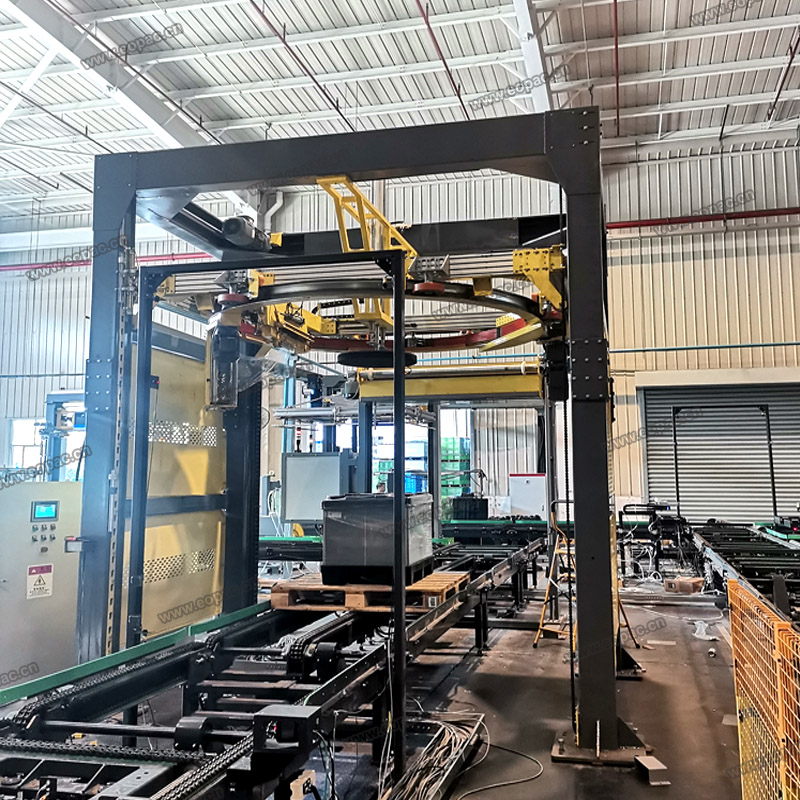

Pallet wrapping machine with rotation ring is fully automatic machine that do not require any user intervention and allow the application of a plastic film around the pallet to protect and preserve it throughout transport and storage.
Eopac's Inline Rotation Ring Stretch Wrapper Advantage：
1. Siemens advanced PLC controller & 7'' colorful touch screen allows easy to operate.
2. Travelling film clamp unit with hot wire film cutting which incorporates also the device for final sealing of the film tail
3. Heavy duty design and famous brand parts ensure long life and minimum maintenance.
4. World-famous parts ensure high quality of the whole line.
5. Operating costs and maintenance cost low, automatic operation, can realize unmanned management operations.
Size of The Loads ( Pallets) to be Wrapped | |
Min load size | 500mm (L) X 500mm (W) |
Max load size | 1200mm (L) X 1300mm (W) |
Max load weight | conveyor weight capacity |
Machine Performance | |
Packing efficiency | 50-65 loads/hour |
Wrap Ring soft start & stop | YES |
Wrap Ring rotation speed: | 3-45 rpm adjustable |
Rotating ring inner diameter | 2180mm (86'') |
Ring Up/down Speed | Adjustable |
Film Delivery System | |
Carriage | 1. Power pre-stretch Film Delivery System, stretch ratio up to 250%. 2. Film tension adjustable 3. Carriage door opens for effortless roll change and thread film |
Electrical Features | |
Power supply voltage | 380 V 3Phase – 50/60 Hz |
Power | 5.5Kw Rotation ring motor: 1.5kw Film feed motor : 0.75kw Ring lift motor:3kw
|
Machine Weight & Size | |
Machine size (LXWXH) | 4050mm X1800mm X3100mm |
Machine weight | N.W. 1000KG G.W.1100KG |
Film cut & welding unit | |
Cutter: | Yes (Hot wire cutter) |
Film tail welding unit: | Yes ( Pneumatic control) Welding (seal) the film tail, ensure no film tail comes out |
Film tail clamp unit: | Yes ( Pneumatic control) |
Increase your productivity even further! Rotaiton ring stretch wrapping machine gives maximum wrapping performance at 45 RPM and 65+ load per hour.
The end-of-line solution will be tailor make according your application.
We also make Chain Conveyor , Roller Conveyor , Pallet Rotating Turntable, Pallet Pop-Up Transfer, Pallet Lifting Device etc to complete the whole line.
Looking for the suitable end-of-line solution? Contact us soon.
And our experienced technicians will design the end- of -solutions based on your applications.
