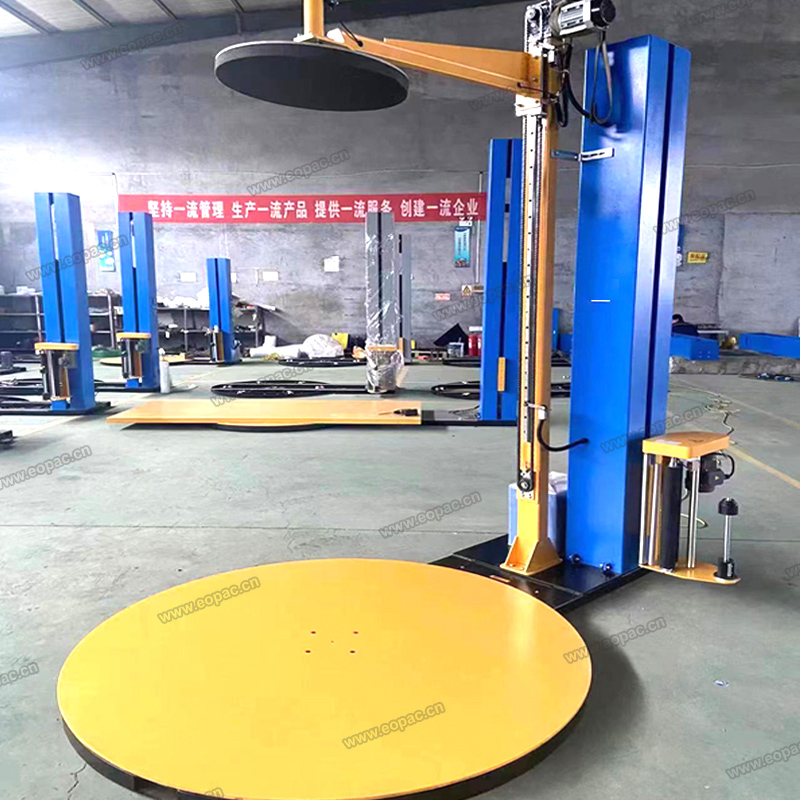

Pallet Wrapper with Top Platen

This pallet Wrapper is suitable for unstable and light loads. Stretch Wrapper with top platen unit resolves the unstable pallet packing problem, top platen unit provides support on top of the pallet during wrapping.

Share:
Brochure

Product Details

    Size of The Loads (     Pallets)  to be Wrapped

    Min load size

    500mm (L) X 500mm (W)

    Max load size

    1200mm (L) X 1200mm (W)

    Max load height

    1800mm       (Option: 2400mm,2800mm,   3000mm)

    Max load weight

    2000kg (4400lbs)    (Option:   2500kgs, 3000kgs)

    Machine Performance

    Packing efficiency

    20-30 loads/hour

    Load height sensing by PE

    YES

    Turntable soft start & stop

    YES

    Turntable rotation speed:

    3-12 rpm adjustable

    Turntable diameter

    1650mm   (Option: 1800mm,     2000mm,2200mm, 2400mm)

    Turntable height

    78mm

    Move the machine with forklift

    Front & Rear

    Carriage Up/down Speed

    Adjustable

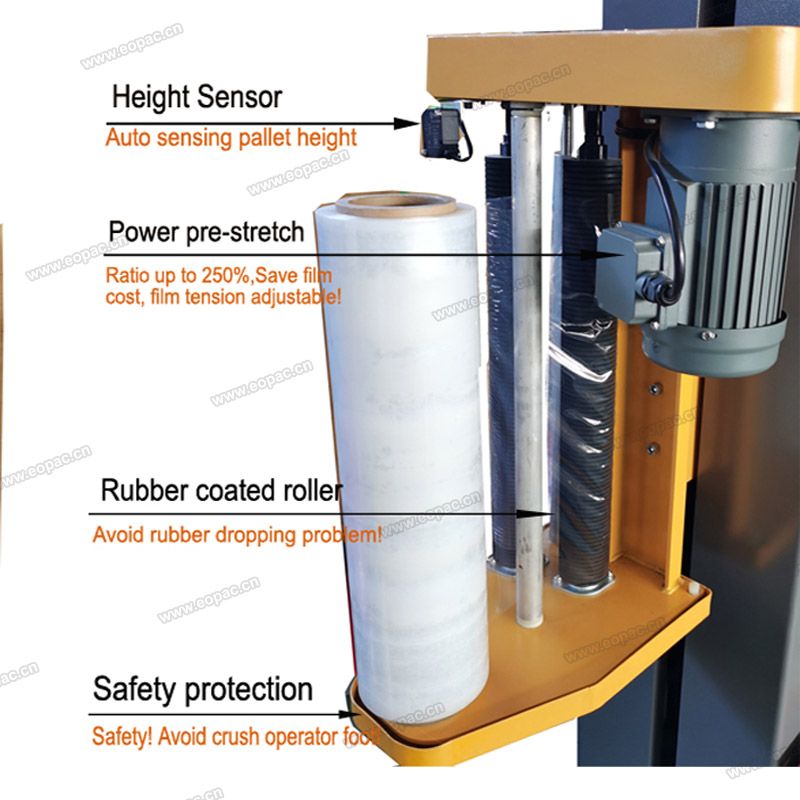

    Film Delivery System

    Carriage

    lPower pre-stretch Film Delivery   System, stretch ratio up to 250%.
        Help you save Packing cost= Save money!!

    l  Film tension adjustable

    Electrical Features

    Power supply voltage

    220 V 1Phase – 50/60 Hz

    Power

    1.8Kw

    Machine Weight & Size

    Machine size (LXWXH)

    2575mm X1650mm X2760mm

    Machine weight

    N.W. 650KG   G.W.750KG

    Top Platen Unit

    Top platen drive

    Motor drive

    Top platen speed

    Up-down speed is adjustable
