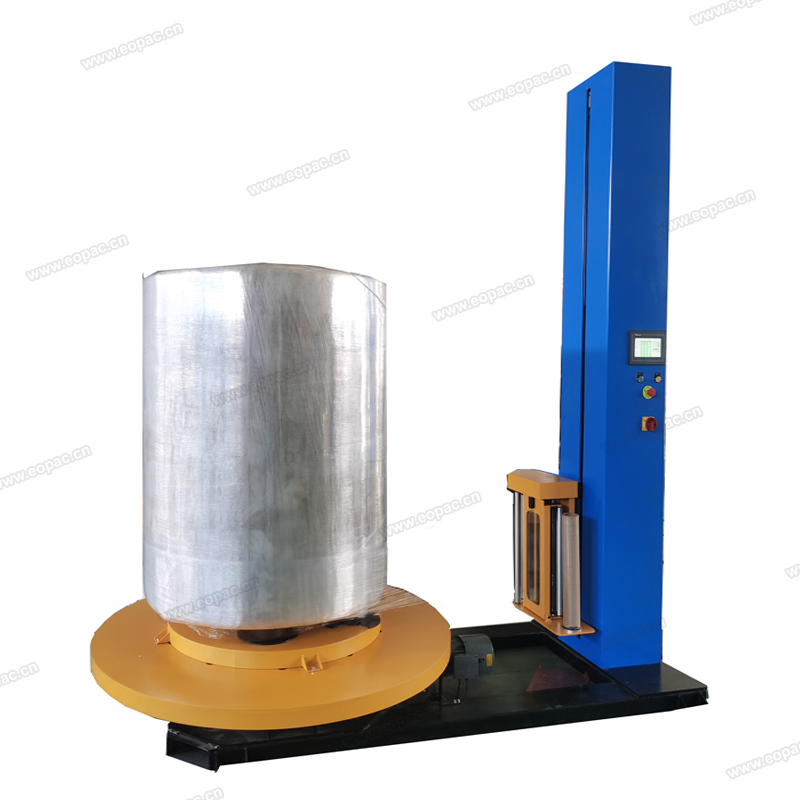

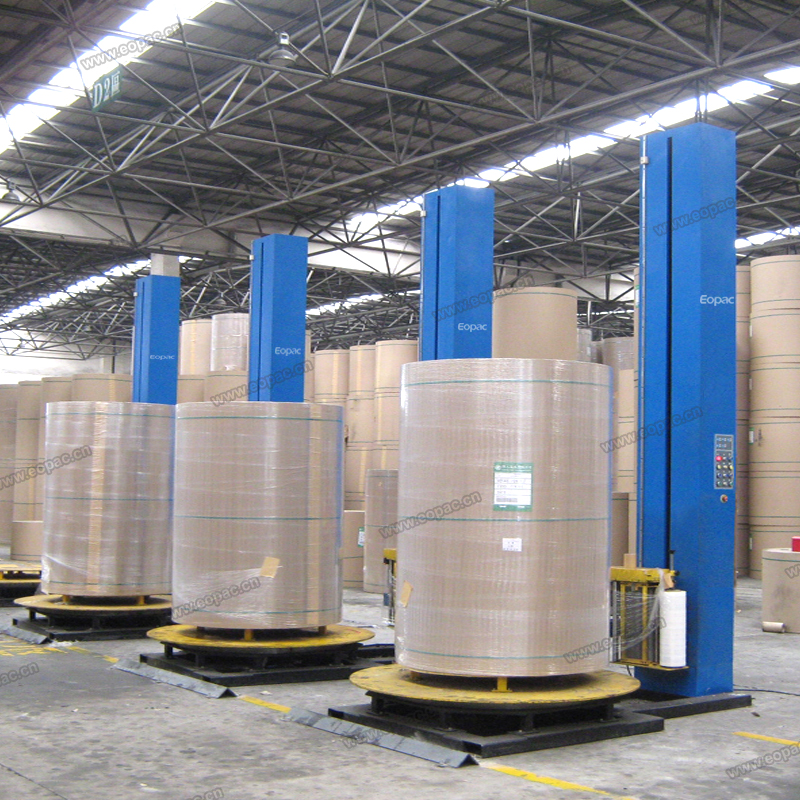

This machine can wrap pallets and paper roll. If wrap paper roll, you can place both end cover on the roll.
Tell us your pallet size and details,we will recommend the suitable Stretch Wrapper for your application.
Advantage

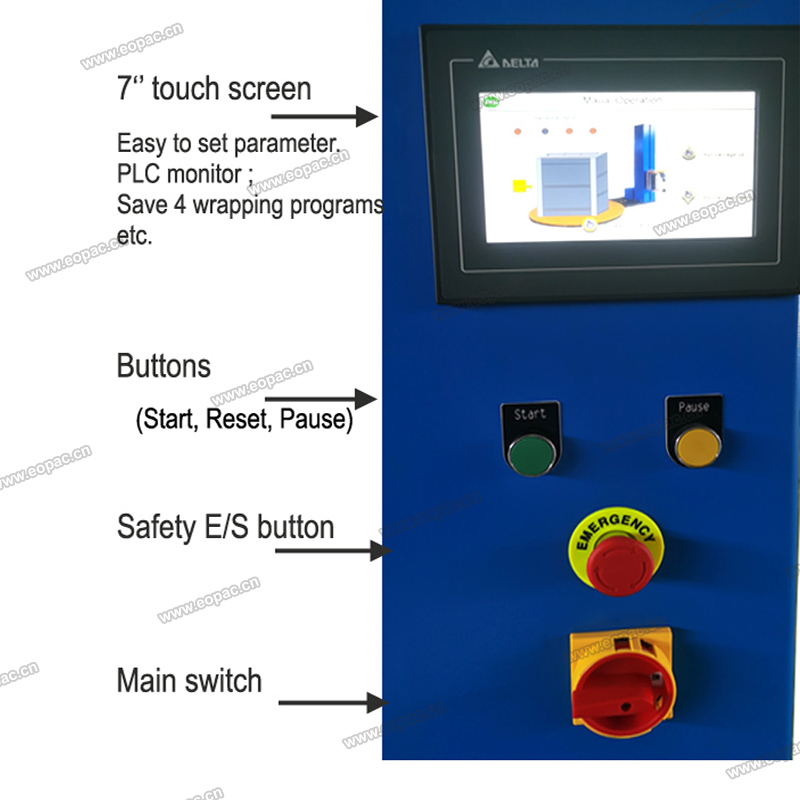

1. 7' touch screen control panel allows simple operation
2. Save 30%-50% on packing cost, reduce labor
3. Heavy duty design ensure long life and minimum maintenance.
4. Turntable drive is slew bearing, more reliable.
Size of The Loads ( Pallets) to be Wrapped | |
Min load size | 500mm (L) X 500mm (W) |
Max load size | 1200mm (L) X 1100mm (W) |
Max load height | 1800mm (Option: 2400mm,2800mm) |
Max load weight | 2500kgs, 3000kgs |
Machine Performance | |
Packing efficiency | 20-30 loads/hour |
Load height sensing by PE | YES |
Turntable soft start & stop | YES |
Turntable diameter | 1650mm |
Turntable height | 350mm |
Move the machine with forklift | Front & Rear |
Carriage Up/down Speed | Adjustable |
Film Delivery System | |

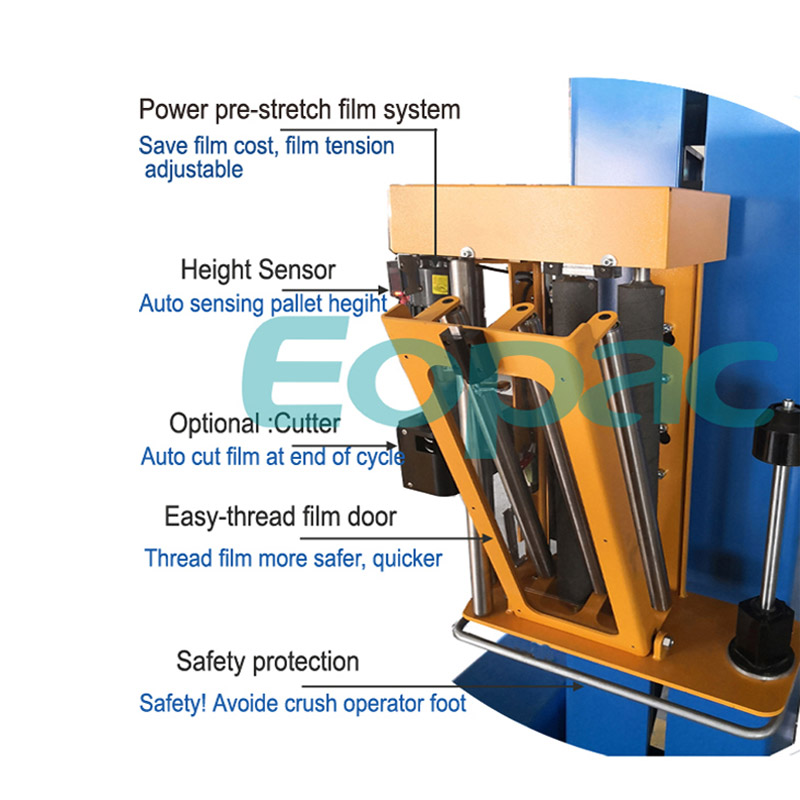

Carriage | 1. Power pre-stretch Film Delivery System, stretch ratio up to 250%. 2. Film tension adjustable 3. Carriage door opens for effortless roll change and thread film |
Turntable drive | |
Turntable rotation speed: | 3-12 rpm adjustable |
Turntable drive | Heavy duty slew bearing drive |
Turntable motor | Brake motor, 1.1kw |
Electrical Features | |
Power supply voltage | 380 V 3Phase – 50/60 Hz |
Power | 1.9Kw Turntable brake motor: 1.1kw Film carriage lift motor:0.37kw Film feed motor:0.37kw |
Machine Weight & Size | |
Machine size (LXWXH) | 2925mm X1650mm X2400mm |
Machine weight | N.W. 1000KG G.W.1100KG |
Options available to custom build to meet specific needs
1.AUTO FILM CUT-OFF
Cut film tail automatic after stretch wrapping cycle finished, save operator time
2.BIGGER TURNTABLE DIAMETER
Increase length and width of your loads: 1800mm; 2000mm
3.EXTEND PACKING HEIGHT
Increase the stretch wrapper wrap heights for your loads:2800mm ;3000mm; 3200mm
Are you looking for top quality,reliable and cheaper pallet wrapper ? Contact Us Soon !
We are specialized manufacturers from China, Pallet Wrapper, Pallet Wrap suppliers/factory, wholesale high-quality products of Pallet Wrapping Machine R & D and manufacturing, we have the perfect after-sales service and technical support. Look forward to your cooperation!
