Our Reel wrapper ensure your rolls are properly wrapped and safety shipped, reducing shipping damage in the supply chain.
Advantage:
1. With power pre-stretcch film carriage, help you save 30%-50% on packing cost.
2. Advanced PLC controller & 7'' colorful touch screen, easy to operate.
3. Heavy-duty design ensures long life and minimum maintenance.
4. Weight capacity up to 3000kgs
Size of rolls to be Wrapped | |
Roll diameter | 500mm-1800mm |
Roll width | 500mm-2000mm |
Max weight capacity | 2000kg (4400lbs) |
Machine Performance | |
Packing efficiency | 20-30 rolls/hour |
Turntable diameter | 2000mm |
Turntable roller center distance | 420mm |
Turntable roller diameter | 130mm |
Turntable height | 660mm |
Turntable soft start & stop | YES |
Turntable rotation speed: | 3-12 rpm adjustable |
Turntable drive | Heavy-duty Slew bearing drive |
Carriage Up/down Speed | Adjustable |
Film Delivery System | |

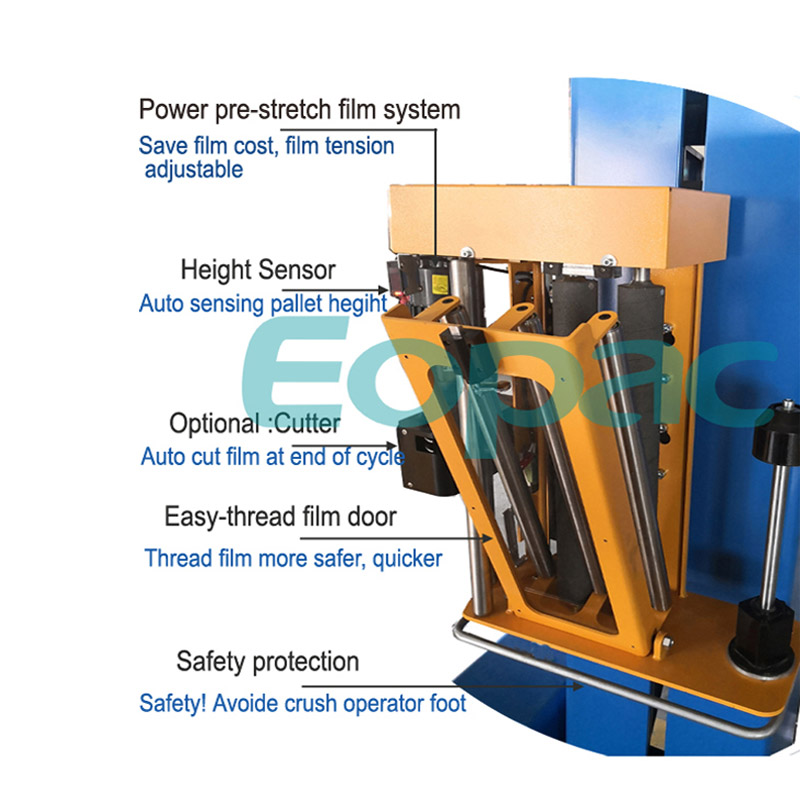

Carriage | 1.Power pre-stretch Film Delivery System, stretch ratio up to 250%. 2.Film tension adjustable |
Electrical Features | |
Power supply voltage | 380 V 3Phase – 50/60 Hz |
Power | 2.3Kw |
Machine Weight & Size | |
Machine size (LXWXH) | 3025mm X2000mm X2260mm |
Machine weight | N.W. 100KG G.W.110KG |
Options available to custom build to meet specific needs
1.PAPER ROLL REJECT SYSTEM
Turntable rolls raise up after wrapping finished to Push out the wrapped rolls , easy to unload the rolls
2.TOP PLATEN
Add top platen to protect the unstable rolls during stretch wrapping
3.AUTO FILM CUT-OFF
Cut film tail automatic after stretch wrapping cycle finished, save operator time
4.WEIGHT SCALE
Weighing the roll weight at the same time of wrapping.
Looking for ideal Heavy Duty Paper Roll Stretch Wrapper Manufacturer & supplier ? We have a wide selection at great prices to help you get creative.
All the Jumbo Paper Rolls Stretch Wrapping Machine are quality guaranteed. We are China Origin Factory of Jumbo Rolls Wrapping Machine.
If you have any question, please contact us soon.
