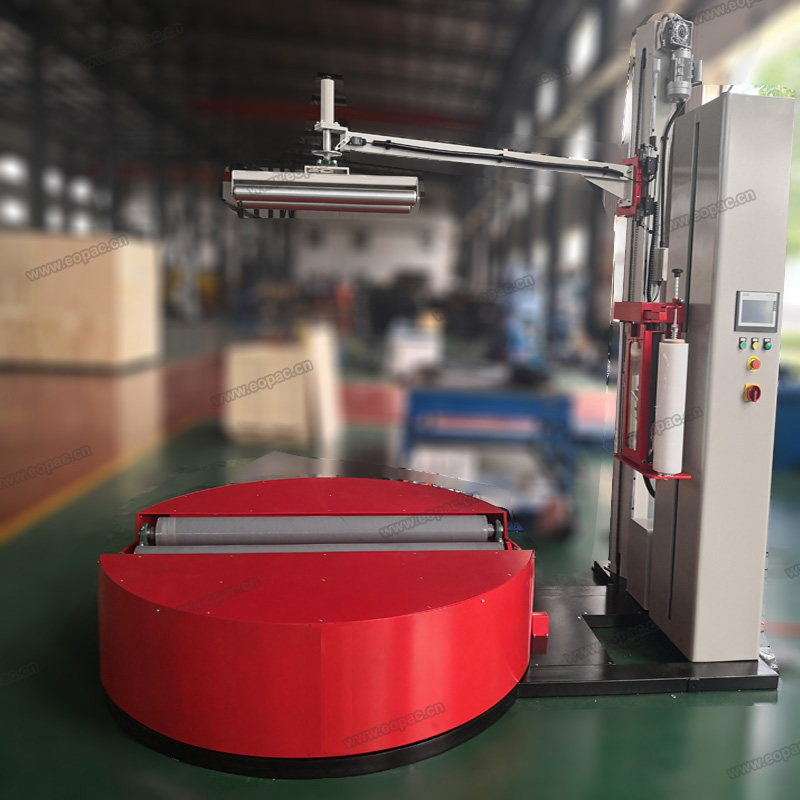

Rolls Stretch Wrapping Machine with Top Platen

Reel wrapper with top platen is designed for light or several small rolls pack together.Add top platen to protect the unstable rolls during stretch wrapping.This machine provide a cocoon type packing and protect the product from damage, moisture and dust. Ensure your rolls are properly wrapped and arrive at your customers’ locations in “as made” conditions.

Brochure

Size of rolls to be Wrapped
Roll diameter	500mm-1800mm
Roll width	500mm-2000mm
Max weight capacity	2000kg (4400lbs)
Machine Performance
Packing efficiency	*20-30 rolls/hour*
Turntable diameter	2000mm (Option: 2200mm, 2400mm....3000mm)
Turntable roller center distance	420mm
Turntable roller diameter	130mm
Turntable height	400mm
Turntable soft start & stop	YES
Turntable rotation speed:	3-12 rpm adjustable
Turntable drive	Heavy-duty chai drive
Carriage Up/down Speed	Adjustable
Film Delivery System

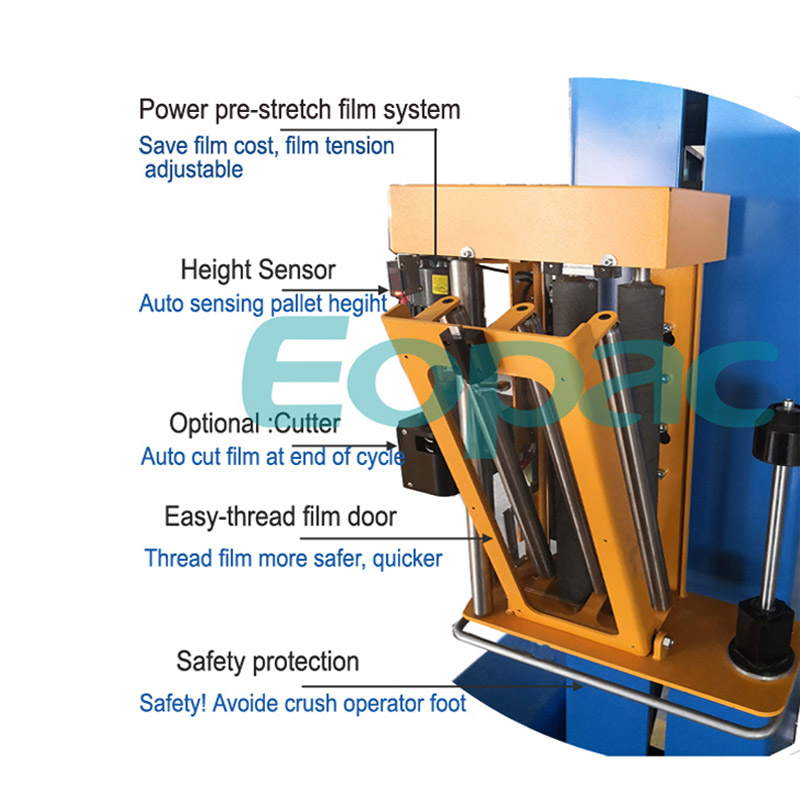

Carriage	1.Power pre-stretch Film Delivery System, stretch ratio up to 250%. Help you save Packing cost= Save money!! 2.Film tension adjustable
Electrical Features
Power supply voltage	380 V 3Phase – 50/60 Hz
Power	2.3Kw
Machine Weight & Size
Machine size (LXWXH)	3025mm X2000mm X2260mm
Machine weight	N.W. 100KG G.W.110KG

Options available to custom build to meet specific needs

1.PAPER ROLL REJECT SYSTEM

Turntable rolls raise up after wrapping finished to Push out the wrapped rolls , easy to unload the rolls

2.WEIGHT SCALE

Weighing the roll weight at the same time of wrapping.

3.AUTO FILM CUT-OFF

Cut film tail automatic after stretch wrapping cycle finished, save operator time
