Machine Performance | |
Packing efficiency | 20-40 rolls/hour |
Roller length | 1600mm |
Roller height (from the ground) | 600mm (Machine can pit mounted) |
Roller Capacity | 1500kgs |
Roller diameter | 150mm |
Roller center distance | 380mm |
Roll width sensing | Limiting switch |
Roller drive motor | 0.75kw |
Film carriage move speed | Adjustable |
Film carriage drive motor | 0.4kw |
Film carriage feed film motor | 0.4kw |
Electrical Features | |
Power supply voltage | 220 V 1 Phase -50 Hz/60Hz 20A |
Power | 1.6 Kw |
Stretch Film Roll detail | |
Film Max. external diameter (D): | 230 mm |
Internal diameter (d): | 76 mm |
Film width: | 500 mm (20’’) |
Film thickness: | 17-35 µm |
Machine weight & size | |
Machine size | 3500mm (L) x 1600mm (W) |
Approximate Machine net weight | 1100kgs |
China non woven rolls packaging Suppliers

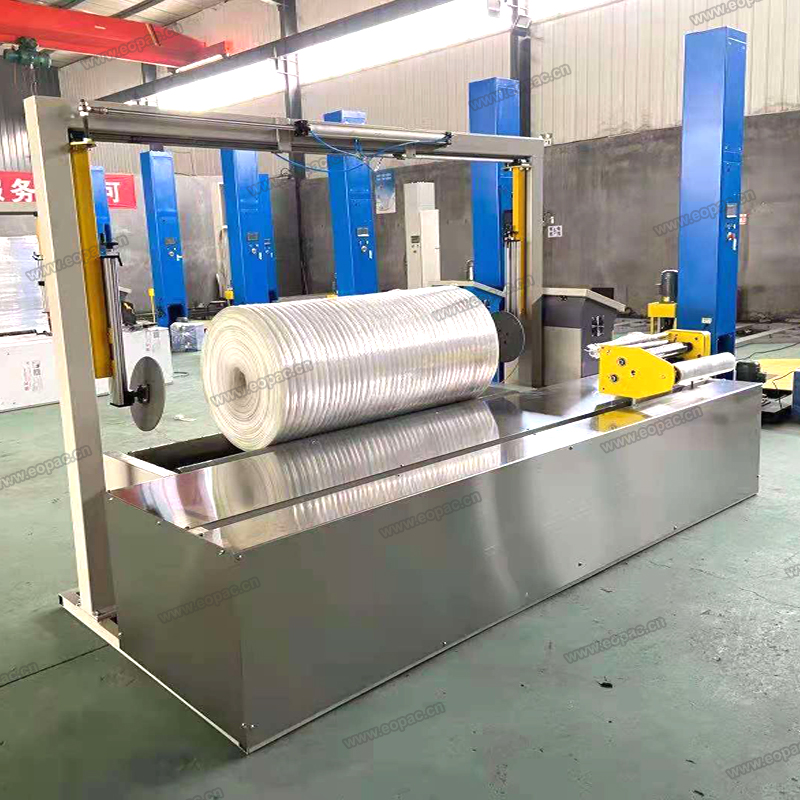

Nonwoven rolls Stretch Wrapper is designed for packing paper rolls, woven fabrics etc.
Contact Us Now. We can custom-made according your rolls size.
