  • EH-6030+ST-6040E Semi-auto Sleeve Sealer & Shrink Tunnel

EH-6030+ST-6040E Semi-auto Sleeve Sealer & Shrink Tunnel

EH-6030 using imported motor makes it more stable during pushing and sealing
Share:
Brochure

Product Details

    Model          EH-6030ST-6040E
    Power1kw18kw
    Power SupplyAC220V 1/3PH 50/60HzAC220/380V 3PH 50/60Hz
    Max Packing Size L×W×H500×300×300mm1500×500×300mm
    Tunnel Size L×W×H/1800×600×400mm
    Blade Length670mm/
    Air Temperature0-300℃0-300℃
    Table Height820±50mm820±50mm
    Packing Speed5-8m/min.0-15m/min
    External Air Source6-8kg/cm2/
    Shrink FilmPEPE
    Machine Size L×W×H1000×850×1991mm2800×1050×1750mm
    Packaging Size L×W×H1050×900×2141mm2850×1100×1900mm
    G./N. Weight350/300kgs625/565kgs


    ●EH-6030 using imported motor makes it more stable during pushing and sealing;

    ● A specially designed sealing knife makes sure solid sealing line, no cracking and anti-stick;

    ● Usage of imported electrical components reduces failure during the using process;

    ● Concealed motor device greatly increases the convenience of operation. Back end pressing device ensures that the light products will not move;

    ●The front fixing frame can be adjusted, so it can pack different shapes products;

    ●SF-6040E using imported double air circulation motors, so that the hot air in the oven can spread more evenly to get a good shrink effect;

    ● Using solid steel rod covered by imported silicone tubes, chain conveying, durable silicone; SF-6040E can add density axis function which specially designed for small volume products;

    ● The use of frequency inverter controls transmission speed which has the function of infinitive speed;

    ● GH-6030 + SF-6040E is an economical machine in GH Series sleeve shrink packaging machine. The operation is simple. Just pressing the pusher button, the machine automatically seal then the products enter into shrink packaging machine. The machine mainly uses PE shrink film;

    ● The machine is widely used in drinks, daily chemical, building materials, food with paper tray or without paper tray etc. And it also can be used for electrical appliances, auto parts, furniture, flooring and other individual or group shrink wrap.

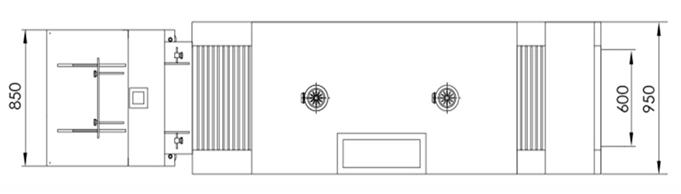

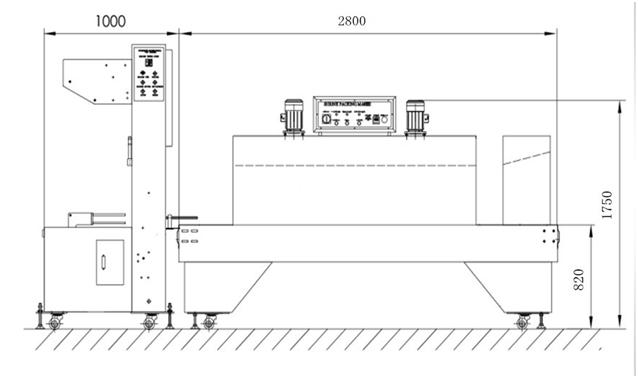

    LAYOUT


    LAYOUT

    LAYOUT


    We can offer customized machine according to the size of your products!

    We can replace the configuration according to your needs!


    customized machine customized machine

    customized machine
