| Size of The Loads ( Pallets) to be Wrapped | |
| Min load size | 500mm (L) X 500mm (W) |
| Max load size | 1200mm (L) X 1200mm (W) |
| Max load size diagonal (Recommend) | 1800mm (70'') |
| Max load height | 1800mm (70'') (Option: 2400mm, 2800mm) |
| Max load weight | 2000kgs(4400lbs) (Option: 2500kgs, 3000kgs) |
| Film Delivery System | |
| Carriage | Power pre-stretch Film Delivery System, stretch ratio up to 300%. Help you save Packing cost= Save money!! Carriage door opens for effortless roll change and thread film Film tension adjustable |
| Machine Performance | |
| Packing efficiency | 20-40 loads/hour |
| Load height sensing by photocell | YES |
| Turntable soft start & stop | YES |
| Turntable rotation speed: | 3-12 rpm adjustable |
| Turntable diameter | 1650mm (65'') |
| Turntable height | 78mm |
| Move machine with forklift | Front & Rear |
| Carriage Up/down Speed | Adjustable |
| Electrical Features | |
| Power supply voltage | 220 V 1 Phase - 50/60 Hz |
| Power | 1.8Kw |
| Machine weight & size | |
| Machine size | 2675mm (L) 1650mm (W) 2860mm (H) (105'' L X 65''W X 112'H') |
| Approximate Machine net weight | 700kg |
| Stretch Film Roll detail | |
| Film Max. external diameter (D): | 230 mm |
| Internal diameter (d): | 76 mm |
| Film width: | 500 mm (20'') |
| Film thickness: | 17-35 µm |
The display control panel allows simple operation. Heavy duty design ensure long life and minimum maintenance.
Advantage-- Save labor, low investment, small space occupy, improve packing efficiency, reduce loads damage during shipment.
Are you looking for top quality,reliable and cheaper pallet wrapper ? Contact us soon !
RAMP
Lets operator easy to place the load on the turntable of stretch wrapping machine with a pallet jack.
AUTO FILM CUT-OFF
Cut film tail automatic after stretch wrapping cycle finished, save operator time
BIGGER TURNTABLE DIAMETER
Increase length and width of your loads: 1800mm; 2000mm
EXTEND PACKING HEIGHT
Increase the stretch wrapper wrap heights for your loads:2800mm ;3000mm; 3200mm

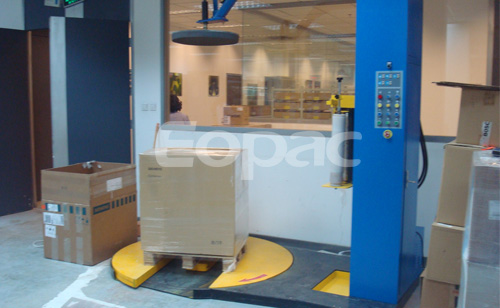

Our Stretch wrapping machines ensure your loads(pallets) are properly wrapped and safety shipped, reducing shipping damage in the supply chain.

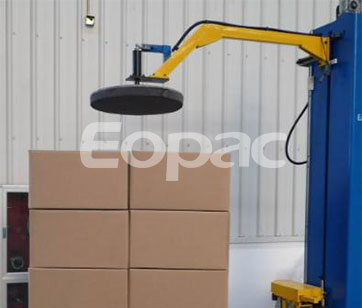

With seperatly Motorised drive top platen unit, ET300PPS-TP Pallet Wrapper is suitable high, unstable and lifht loads. Stretch Wrapper with top platen unit resolve the unstalbe pallet packing problem, top platen unit provides support on top of the pallet during wrapping.
