| Size of The Loads ( Pallets) to be Wrapped | |
| Min load size | 500mm (L) X 500mm (W) |
| Max load size | 1200mm (L) X 1200mm (W) |
| Max load size diagonal (Recommend) | 1800mm (70'') |
| Max load height | 2400mm (94'') (Option: 2800mm, 3000mm) |
| Max load weight | 2500kgs / 3000kgs |
| Film Delivery System | |
| Carriage | Power pre-stretch Film Delivery System, stretch ratio up to 300%. Help you save Packing cost= Save money!! Carriage door opens for effortless roll change and thread film Film tension adjustable |
| Machine Performance | |
| Packing efficiency | 20-40 loads / hour |
| Load height sensing by photocell | YES |
| Turntable soft start & stop | YES |
| Turntable rotation speed: | 3-12 rpm adjustable |
| Turntable diameter | 1650mm (65'') |
| Turntable height | 340mm |
| Move machine with forklift | Front & Rear |
| Carriage Up/down Speed | Adjustable |
| Electrical Features | |
| Power supply voltage | 380 V 3 Phase - 50/60 Hz |
| Power | 2.0 Kw |
| Machine weight & size | |
| Machine size | 2920mm (L) 1650mm (W) 2860mm (H) |
| Approximate Machine net weight | 800kg |
| Stretch Film Roll detail | |
| Film Max. external diameter (D): | 230 mm |
| Internal diameter (d): | 76 mm |
| Film width: | 500 mm (20'') |
| Film thickness: | 17-35 µm |
We provide a wide selection of Pallet Wrapping Machine. This model design for the heavy loads. Max weight capacity =3000kgs. Turntable drive is slew bearing, more reliable. Tell us your pallet size and details,we will recommend the suitable Stretch Wrapper for your application.

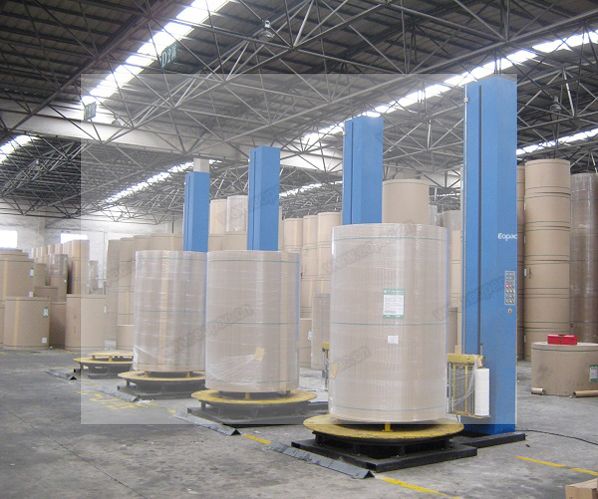

This machine can wrap pallets and paper roll. If wrap paper roll, you can place both end conver on the roll.
The display control panel allows simple operation, Heavy duty design ensure long life and minimum maintenance.
AUTO FILM CUT-OFF
Cut film tail automatic after stretch wrapping cycle finished, save operator time
BIGGER TURNTABLE DIAMETER
Increase length and width of your loads: 1800mm; 2000mm
EXTEND PACKING HEIGHT
Increase the stretch wrapper wrap heights for your loads:2800mm ;3000mm; 3200mm
Are you looking for top quality,reliable and cheaper pallet wrapper ? Contact Us Soon !
Product categories of Pallet Wrapper, we are specialized manufacturers from China, Pallet Wrapper, Pallet Wrap suppliers/factory, wholesale high-quality products of Pallet Wrapping Machine R & D and manufacturing, we have the perfect after-sales service and technical support. Look forward to your cooperation!
